Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good thermal conductivity. Additionally, keeping the input and output capacitors close to the IC and using short, wide traces for the power lines can help reduce thermal resistance.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, using a low-ESR output capacitor, such as a ceramic or film capacitor, and placing it close to the IC can help prevent oscillations. It's also recommended to add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise.
The LM3445MX/NOPB is rated for operation up to 125°C ambient temperature. However, it's essential to consider the thermal derating of the device, which is typically 1.5°C/W for the MX package. This means that the maximum ambient temperature will depend on the specific application and the device's power dissipation.
Yes, the LM3445MX/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices and is also suitable for industrial and medical applications that require high reliability.
To troubleshoot issues with the LM3445MX/NOPB, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component values, and thermal management. Use an oscilloscope to monitor the output voltage and current, and look for signs of oscillations or instability. Also, check the device's thermal performance using an infrared thermometer or thermal imaging camera.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3445MX/NOPB Overview

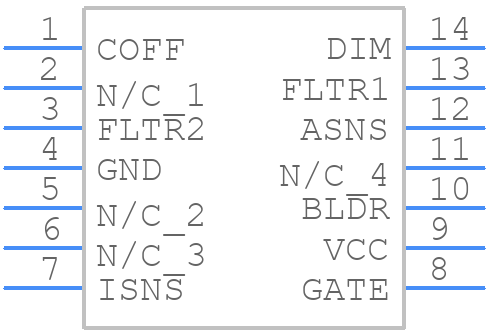

Use the download button to access the LM3445MX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM344,
or try a keyword search, such as Display Drivers
