LM3450MT/NOPB - Texas Instruments

Description: LED Drivers with Active Power Factor Correction and Phase Dimming Decoder

Download LM3450MT/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

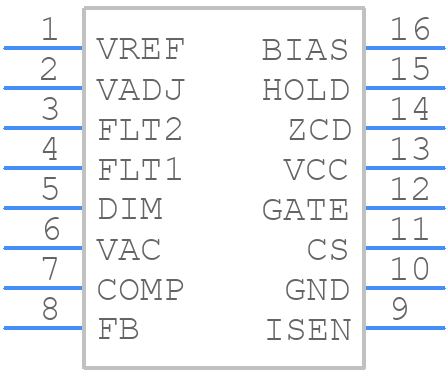

LM3450MT/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM3450MT/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
LM3450MT/NOPB - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

LM3450MT/NOPB Details

  • Manufacturer Part Number:

    LM3450MT/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    8.5 V

  • Supply Voltage-Nom:

    14 V

  • Supply Voltage1-Max:

    20 V

  • Supply Voltage1-Min:

    8.5 V

  • Supply Voltage1-Nom:

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    0.0007 MHz

LM3450MT/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A thermal pad on the bottom of the IC should be connected to the ground plane.
  • To ensure reliable start-up and operation, it's recommended to add a soft-start circuit to limit the inrush current and a voltage supervisor to monitor the input voltage. Additionally, a bulk capacitor with a low ESR should be used to filter the input voltage.
  • The maximum junction temperature (Tj) for the LM3450MT/NOPB is 150°C. However, it's recommended to design for a maximum Tj of 125°C to ensure reliable operation and minimize thermal stress.
  • Yes, the LM3450MT/NOPB is qualified for automotive and high-reliability applications. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
  • To minimize EMI, it's recommended to use a shielded inductor, keep the switching node (SW) as short as possible, and use a common-mode choke or EMI filter on the input and output lines. Additionally, a good PCB layout with a solid ground plane and minimal signal routing can help reduce EMI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM3450MT/NOPB Overview

Use the download button to access the LM3450MT/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM345, or try a keyword search, such as Display Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
