A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI (SLUA477) provides additional guidance.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequences outlined in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the input capacitor is properly sized to handle the inrush current.
The output voltage ripple of the LM3488QMMX/NOPB is primarily affected by the output capacitor (Cout), the inductor (L), and the equivalent series resistance (ESR) of the output capacitor. Proper selection and sizing of these components are crucial to minimize output voltage ripple.
Optimizing the compensation network involves selecting the correct values for the compensation resistors (R1 and R2) and capacitors (C1 and C2). TI provides a compensation calculator tool to help with this process. Additionally, the datasheet provides guidelines for selecting the compensation components based on the output voltage and load current.
To minimize EMI, it's essential to use a good layout, keep the switching node (SW) away from sensitive nodes, and use a shielded inductor. Additionally, consider adding EMI filters, such as a common-mode choke and a differential-mode filter, to reduce conducted emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3488QMMX/NOPB Overview

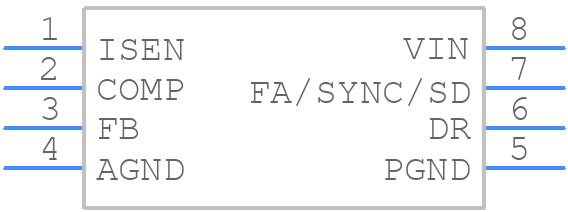

Use the download button to access the LM3488QMMX/NOPB schematic symbol, PCB footprint, and 3D model.
