LM34926SDX/NOPB - Texas Instruments

Description: Switching Voltage Regulators 100V Intg Secondary Side Bias Reg

Download LM34926SDX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

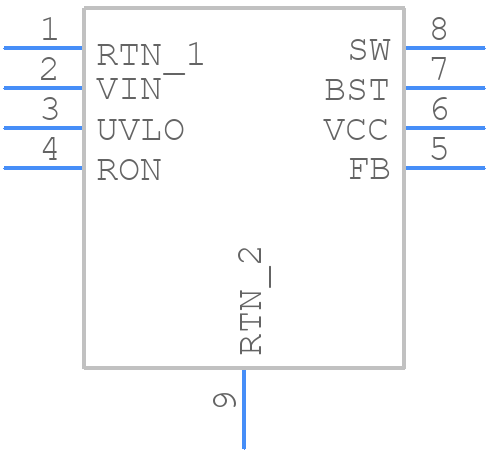

LM34926SDX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM34926SDX/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGU0008B
click to zoom
3D Models
LM34926SDX/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NGU0008B
click to zoom

LM34926SDX/NOPB Details

  • Manufacturer Part Number:

    LM34926SDX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.225V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT MODE

  • Input Voltage-Max:

    100 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    90 V

  • Output Voltage-Min:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LM34926SDX/NOPB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LM34926SDX/NOPB is -40°C to 125°C. However, it's recommended to operate within the specified junction temperature range of -40°C to 150°C to ensure reliable operation.
  • To ensure stability, follow the recommended layout and component selection guidelines in the datasheet. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a low-ESR output capacitor to minimize oscillations.
  • The recommended input capacitor value is 10uF to 22uF, and it's recommended to use a low-ESR ceramic capacitor, such as an X5R or X7R type, to minimize input impedance and ensure stable operation.
  • Yes, the LM34926SDX/NOPB is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
