LM34DM - Texas Instruments

Description: Board Mount Temperature Sensors NRND, alternate is LM34DM/NOPB

Download LM34DM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

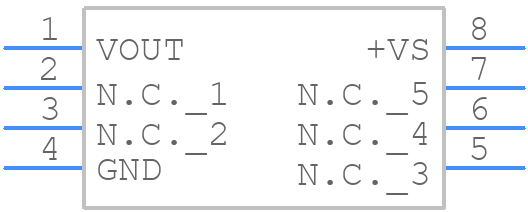

LM34DM - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM34DM - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LM34DM - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LM34DM Details

  • Manufacturer Part Number:

    LM34DM

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    1994-12-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Accuracy-Max (Cel):

    1.111 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.16 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -45 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Max:

    3 V

  • Output Voltage-Min:

    -0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SO(UNSPEC)

  • Package Shape/Style:

    RECTANGULAR

  • R0-Nom:

    0.4 Ω

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Termination Type:

    SOLDER

LM34DM Frequently Asked Questions (FAQs)

  • The LM34DM is a precision analog temperature sensor, typically used in applications that require accurate temperature measurement, such as industrial control systems, medical devices, and automotive systems.
  • The LM34DM is designed to operate over a wide temperature range of -50°C to 150°C, making it suitable for applications that require temperature measurement in extreme environments.
  • The LM34DM has an accuracy of ±1°C over the entire operating temperature range, making it suitable for applications that require high accuracy temperature measurement.
  • The LM34DM has a fast response time of approximately 10 seconds to 90% of the final temperature reading, making it suitable for applications that require rapid temperature measurement.
  • The LM34DM is not designed for use in humid or wet environments, as it is not hermetically sealed. However, it can be used in environments with moderate humidity levels, but it's recommended to take precautions to prevent moisture ingress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM34DM Overview

Use the download button to access the LM34DM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM34D, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
