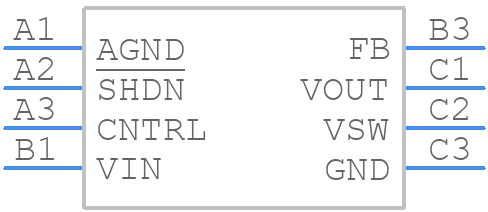

Symbol

click to zoom

PCB Footprints

LM3501TL-21/NOPB - Texas Instruments PCB footprint - BGA - BGA - YZR0008_1

click to zoom

3D Models

LM3501TL-21/NOPB - Texas Instruments - 3D model - BGA - YZR0008_1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LM3501TL-21/NOPB
Part Number LM3501TL-21/NOPB
Manufacturer Texas Instruments
Pin Count 8
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - YZR0008_1
Released Date Apr 21, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LM3501TL-21/NOPB Details

Manufacturer Part Number:
LM3501TL-21/NOPB
Brand Name:
Texas Instruments
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
GREEN, DSBGA-8
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Texas Instruments
YTEOL:
0
Interface IC Type:
LED DISPLAY DRIVER
JESD-30 Code:
S-PBGA-B8
JESD-609 Code:
e1
Length:
1.9415 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Shape:
SQUARE
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.675 mm
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
TIN SILVER COPPER
Terminal Form:
BALL
Terminal Pitch:
0.5 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
1.9415 mm

LM3501TL-21/NOPB Frequently Asked Questions (FAQs)

The maximum input voltage that can be applied to the LM3501TL-21/NOPB is 26V. Exceeding this voltage can cause damage to the device.
To ensure stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF with an ESR of less than 1 ohm. Additionally, the input capacitor should be at least 10uF with an ESR of less than 1 ohm.
The maximum output current that the LM3501TL-21/NOPB can provide is 3A. However, the output current should be derated based on the ambient temperature and the input voltage to ensure reliable operation.
To protect the LM3501TL-21/NOPB from overheating, it is recommended to provide adequate heat sinking and to ensure that the device is operated within its recommended operating temperature range of -40°C to 125°C.
Yes, the LM3501TL-21/NOPB is suitable for use in high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure that it meets the requirements of the automotive and industrial markets.

Trust Checks

Community Provided

System Verified

Community Approved

LM3501TL-21/NOPB Overview

Use the download button to access the LM3501TL-21/NOPB schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LM350, or try a keyword search, such as Display Drivers
