LM3525M-L/NOPB - Texas Instruments

Description: Single Port USB Power Switch and Over-current Protection

Download LM3525M-L/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

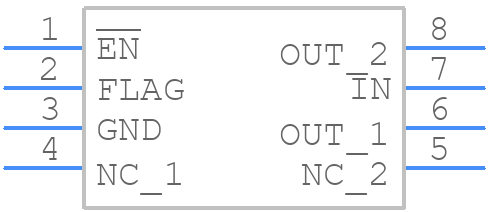

Symbol
LM3525M-L/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM3525M-L/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
LM3525M-L/NOPB - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

LM3525M-L/NOPB Details

  • Manufacturer Part Number:

    LM3525M-L/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LM3525M-L/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM3525M-L/NOPB is 40V, but it's recommended to keep it below 35V for reliable operation.
  • To ensure the LM3525M-L/NOPB operates within its SOA, make sure to keep the input voltage, output current, and junction temperature within the recommended limits specified in the datasheet.
  • The bootstrap capacitor (CBOOT) is used to generate the gate drive voltage for the high-side MOSFET. It's essential for proper operation of the converter.
  • The inductor value depends on the input voltage, output voltage, and desired switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet or application notes.
  • A good layout and placement for the LM3525M-L/NOPB involves keeping the high-current paths short, using a solid ground plane, and placing the input and output capacitors close to the IC. Refer to the datasheet and application notes for more guidance.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LM3525M-L/NOPB Overview

Use the download button to access the LM3525M-L/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM352, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
