Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, make sure to follow the datasheet's guidelines for component selection, such as using a suitable output capacitor with a low ESR, and a feedback resistor with a high enough value. Additionally, ensure that the input voltage is within the recommended range, and that the output is not overloaded.
The LM3559TLE/NOPB has an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to ensure that the IC is properly heat-sinked.
Yes, the LM3559TLE/NOPB is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's recommended to follow the specific requirements and guidelines for the target application, and to consult with Texas Instruments' support team for any specific questions or concerns.
To troubleshoot issues with the LM3559TLE/NOPB, start by checking the input voltage, output voltage, and output current to ensure they are within the recommended ranges. Check the PCB layout and component selection to ensure they meet the datasheet's guidelines. Use an oscilloscope to check for oscillations or noise on the output, and use a thermal camera or thermometer to check for overheating. Consult the datasheet and application notes for troubleshooting guides and tips.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3559TLE/NOPB Overview

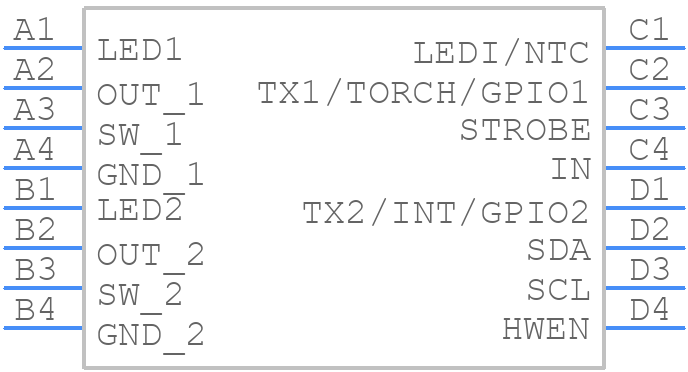

Use the download button to access the LM3559TLE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM355,
or try a keyword search, such as Display Drivers
