Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and loops.
The datasheet provides guidelines for inductor selection, but it's also important to consider factors such as inductor core material, saturation current, and DC resistance. TI also provides an inductor selection tool on their website to help with this process.
The datasheet specifies an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature depends on the specific application and thermal design. A general rule of thumb is to derate the ambient temperature by 10-20°C to ensure reliable operation.
Yes, the LM3565TLE/NOPB is qualified to AEC-Q100 Grade 1, which means it meets the requirements for automotive applications. However, it's still important to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.
TI provides a troubleshooting guide in the datasheet, but it's also important to follow general debugging best practices, such as using an oscilloscope to measure waveforms, checking for proper component values and placement, and verifying that the input voltage and current are within the specified range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM3565TLE/NOPB Overview

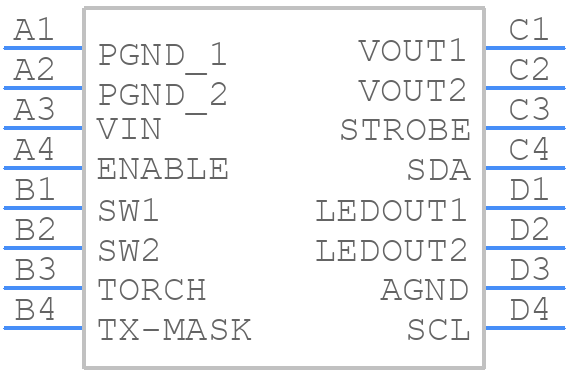

Use the download button to access the LM3565TLE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM356,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
