LM36272YFFR - Texas Instruments

Description: Two-Channel LCD Backlight and Bias Power

Download LM36272YFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

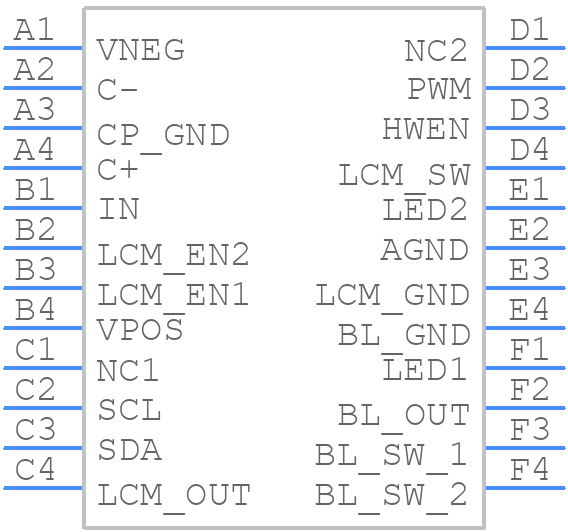

Symbol
LM36272YFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM36272YFFR - Texas Instruments PCB footprint - BGA - BGA - YFF (R-XBGA-N24)
click to zoom
3D Models
LM36272YFFR - Texas Instruments - 3D model - BGA - YFF (R-XBGA-N24)
click to zoom

LM36272YFFR Details

  • Manufacturer Part Number:

    LM36272YFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-06-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PBGA-B24

  • JESD-609 Code:

    e1

  • Length:

    2.41 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Segments:

    16

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6405 mm

  • fmax-Min:

    1.05 MHz

LM36272YFFR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. Additionally, placing the device near a thermal pad or heat sink can improve heat dissipation.
  • To ensure stable output voltage regulation, it's essential to decouple the input voltage with a capacitor (e.g., 10uF) and place a filter capacitor (e.g., 1uF) at the output. Additionally, selecting the correct output voltage setting resistors and ensuring a stable input voltage within the recommended range can help maintain regulation.
  • The LM36272YFFR can deliver up to 2A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. It's essential to consult the datasheet and perform thermal calculations to determine the maximum output current capability for a specific application.
  • The LM36272YFFR has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, additional protection can be achieved by using external components such as a voltage supervisor or a voltage clamp to prevent damage from voltage transients or faults.
  • Texas Instruments recommends using a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10uF to 22uF as the input capacitor. This helps to filter out noise and ensure stable operation.
