Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. Additionally, placing the device near a thermal pad or heat sink can improve heat dissipation.
To ensure reliable startup and shutdown, it's essential to follow the recommended startup and shutdown sequences outlined in the datasheet. This includes ramping up the input voltage slowly, ensuring the input voltage is within the recommended range, and providing a stable clock signal.
Operating the LM36273YFFR beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's crucial to operate the device within the specified temperature range, input voltage, and output current to ensure optimal performance and longevity.
To troubleshoot issues with the LM36273YFFR, start by verifying the input voltage, output current, and clock signal are within the recommended specifications. Check for proper PCB layout, thermal management, and decoupling. Use oscilloscopes or other diagnostic tools to analyze the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
The LM36273YFFR is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional qualification and testing. Texas Instruments recommends consulting with their technical support team to discuss specific requirements and ensure the device meets the necessary standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM36273YFFR Overview

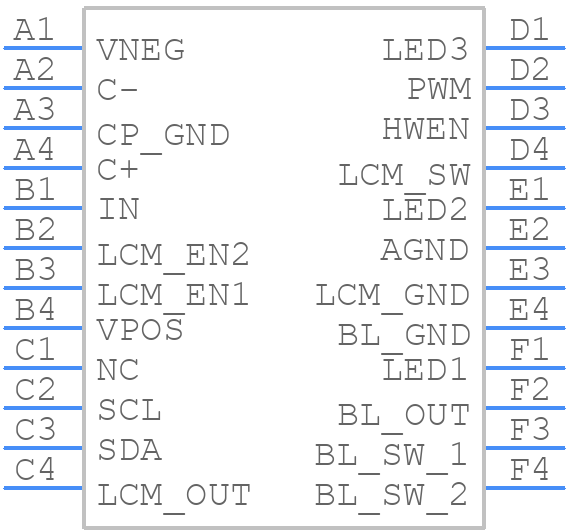

Use the download button to access the LM36273YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM362,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
