Texas Instruments provides a recommended PCB layout in the LM3642TLX-LT/NOPB datasheet, which includes a thermal pad connected to a copper plane on the PCB to dissipate heat. Additionally, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane to reduce thermal resistance.
To ensure the device operates within the recommended operating conditions, it is essential to follow the guidelines provided in the datasheet. This includes operating the device within the recommended voltage range (2.7V to 5.5V), current range (up to 1A), and temperature range (-40°C to 125°C). Additionally, it is crucial to provide adequate thermal management and to follow proper PCB design and layout guidelines.
The LM3642TLX-LT/NOPB has a typical output voltage tolerance of ±2% over the entire operating temperature range. However, this tolerance can vary depending on the specific application and operating conditions. It is recommended to consult the datasheet and to perform thorough testing to determine the actual output voltage tolerance in your specific application.
Yes, the LM3642TLX-LT/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it is essential to consult the datasheet and to perform thorough testing to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the LM3642TLX-LT/NOPB, it is essential to follow a systematic approach. This includes checking the input voltage, output voltage, and current, as well as verifying the PCB layout and thermal management. Additionally, it is recommended to consult the datasheet and application notes, and to use tools such as oscilloscopes and thermal cameras to diagnose the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3642TLX-LT/NOPB Overview

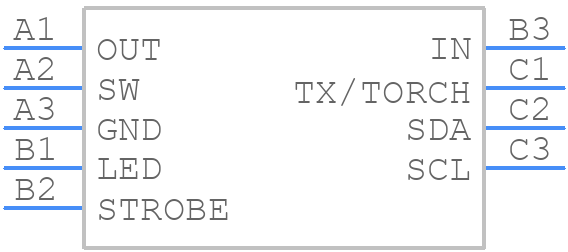

Use the download button to access the LM3642TLX-LT/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM364,
or try a keyword search, such as Display Drivers
