Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. Texas Instruments provides a list of recommended inductors in the datasheet, but it's also recommended to consult with the inductor manufacturer's datasheet and to consider factors such as inductor core material, size, and saturation current.
The maximum ambient temperature range for the LM3646YFQR is -40°C to 125°C, but the device's performance and reliability may be affected at extreme temperatures. It's recommended to consult with the datasheet and to consider derating the device's performance at high temperatures.
Proper thermal management is critical for the LM3646YFQR. This can be achieved by providing a sufficient heat sink, using thermal interface materials, and ensuring good airflow around the device. The datasheet provides thermal resistance values and thermal management guidelines.
The LM3646YFQR is a high-frequency switching regulator, and as such, it can generate electromagnetic interference (EMI). To minimize EMI, it's recommended to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths and widths, and using shielding and filtering components. Additionally, the device should be designed to meet relevant EMC standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3646YFQR Overview

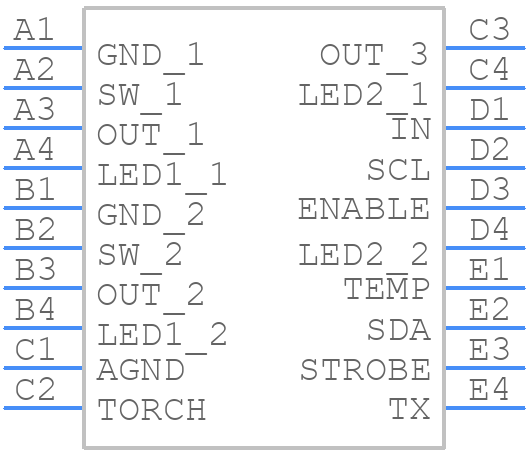

Use the download button to access the LM3646YFQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM364,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
