A good PCB layout for the LM3658SD-B/NOPB should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R ceramic). Also, minimize the distance between the output capacitor and the device, and avoid using long traces or wires.
The LM3658SD-B/NOPB is rated for operation up to 125°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 105°C to ensure the device stays within its thermal specifications.
Yes, the LM3658SD-B/NOPB is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices, and its manufacturing process is compliant with IATF 16949 and ISO 9001 standards.
The LM3658SD-B/NOPB has a built-in POR and BOR circuitry. To handle these features, ensure that the input voltage rises monotonically during power-up, and the output capacitor is sufficiently large to prevent voltage droop during brown-out events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3658SD-B/NOPB Overview

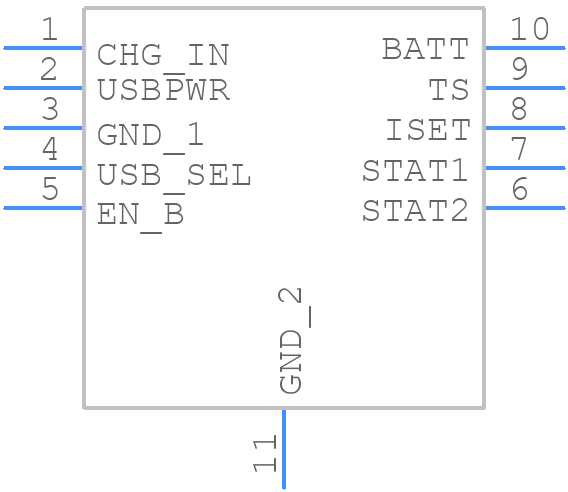

Use the download button to access the LM3658SD-B/NOPB schematic symbol, PCB footprint, and 3D model.
