LM3658SDX-B/NOPB - Texas Instruments

Description: Battery Charger Controller Li-Ion/Li-Pol 1000mA 4.2V 10-Pin WSON EP T/R

Download LM3658SDX-B/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

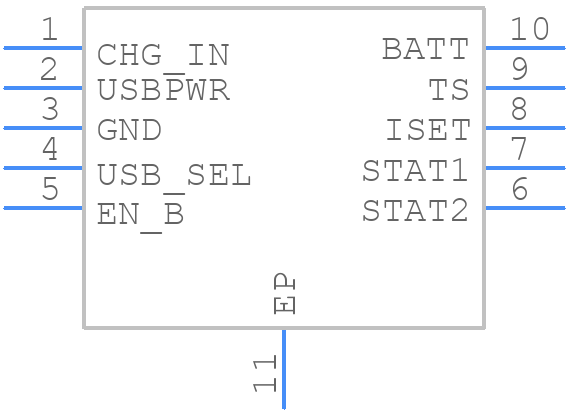

LM3658SDX-B/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM3658SDX-B/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSC0010A
click to zoom
3D Models
LM3658SDX-B/NOPB - Texas Instruments - 3D model - Small Outline No-lead - DSC0010A
click to zoom

LM3658SDX-B/NOPB Details

  • Manufacturer Part Number:

    LM3658SDX-B/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    RESTART THRESHOLD VOLTAGE IS 4 VOLT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1000 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM3658SDX-B/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. Additionally, placing the device near a thermal pad or heat sink can improve thermal performance.
  • To ensure reliable start-up and operation with a low input voltage, it is recommended to add a capacitor (e.g., 10uF) between the VIN pin and GND to filter out noise and voltage droops. Additionally, a soft-start circuit can be implemented to reduce inrush current and prevent voltage drops during start-up.
  • The maximum output current capability of the LM3658SDX-B/NOPB is 3A, but it is recommended to derate the output current based on the ambient temperature and PCB thermal design to ensure reliable operation.
  • To protect the device from overvoltage and undervoltage conditions, it is recommended to add overvoltage protection (OVP) and undervoltage protection (UVP) circuits. For example, a zener diode can be used to clamp the input voltage to a maximum value, and a voltage supervisor IC can be used to detect undervoltage conditions and reset the device.
  • Texas Instruments recommends using a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10uF to 22uF between the VIN pin and GND to filter out noise and voltage droops. The capacitor value should be selected based on the input voltage ripple and noise requirements.
