A good PCB layout for the LM3697YFQR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 5) away from sensitive analog circuits.
To ensure the LM3697YFQR operates within its SOA, monitor the input voltage, output current, and junction temperature. Make sure the input voltage is within the recommended range (3.5V to 15V), the output current is within the maximum rating (3A), and the junction temperature is below the maximum rating (150°C).
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. This helps to filter out high-frequency noise and ensure stable operation.
Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (e.g., 1uH to 10uH). The inductor should also be shielded to minimize EMI. Consult the datasheet and application notes for more guidance on inductor selection.
The EN (enable) pin is used to turn the regulator on or off. Connect the EN pin to a logic-level signal (e.g., from a microcontroller) to enable or disable the regulator. When EN is high, the regulator is enabled; when EN is low, the regulator is disabled.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3697YFQR Overview

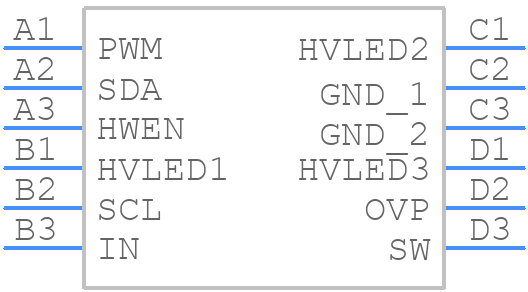

Use the download button to access the LM3697YFQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM369,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
