Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
To ensure stability, make sure to follow the recommended component values and layout guidelines, and also consider the output capacitor's ESR and ESL values. Additionally, a small ceramic capacitor (e.g., 10nF) can be added in parallel with the output capacitor to improve stability.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
The LM3699YFQR is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and follow the recommended thermal design guidelines.
Use an oscilloscope to monitor the input and output voltages, and check for any signs of oscillation or ringing. Verify that the component values and layout meet the recommended specifications, and consult the datasheet and application notes for troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3699YFQR Overview

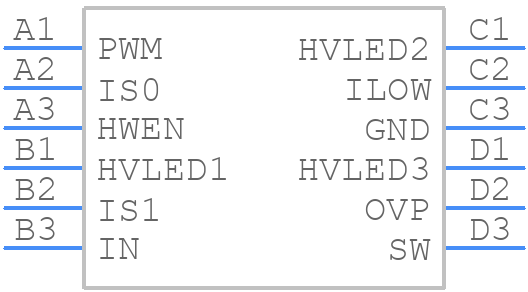

Use the download button to access the LM3699YFQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM369,
or try a keyword search, such as Display Drivers
