Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
The LM3704YCMM-232/NOPB has a thermal pad on the bottom of the package, which should be connected to a solid ground plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if the device is expected to operate at high temperatures or high currents.
The recommended input capacitor value is 10uF to 22uF, and a low-ESR ceramic capacitor such as X5R or X7R is recommended. The capacitor should be placed as close to the VIN pin as possible to minimize noise and ripple.
The LM3704YCMM-232/NOPB is a commercial-grade device, but Texas Instruments offers a similar device, the LM3704YCMM-232Q1, which is automotive-qualified and meets the requirements of the AEC-Q100 standard. For high-reliability applications, it's recommended to consult with Texas Instruments or a qualified reliability engineer.
Start by checking the input voltage, output voltage, and current draw to ensure they are within the recommended operating conditions. Check the PCB layout and thermal management to ensure they meet the recommended guidelines. Use an oscilloscope to check for noise and ripple on the input and output, and consult the datasheet and application notes for troubleshooting guides.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3704YCMM-232/NOPB Overview

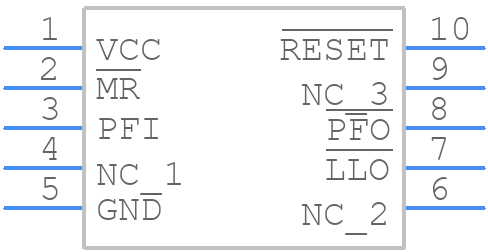

Use the download button to access the LM3704YCMM-232/NOPB schematic symbol, PCB footprint, and 3D model.
