LM3710XKMM-463/NOPB - Texas Instruments

Description: Reset IC / Voltage Supervisor with Power Fail Input, Low Line Output, Manual Reset & Watch Dog Timer

Download LM3710XKMM-463/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

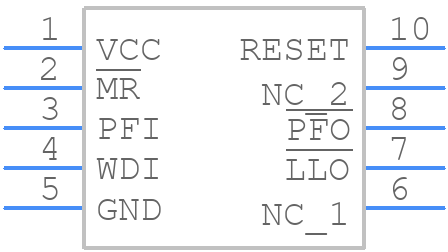

Symbol
LM3710XKMM-463/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM3710XKMM-463/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
LM3710XKMM-463/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

LM3710XKMM-463/NOPB Details

  • Manufacturer Part Number:

    LM3710XKMM-463/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:Y;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.63V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM3710XKMM-463/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM3710XKMM-463/NOPB should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet.
  • To ensure the device operates within the SOA, monitor the voltage, current, and power dissipation. Use the datasheet's SOA graph to determine the maximum allowable voltage and current for a given temperature. Implement overcurrent protection and thermal monitoring to prevent damage.
  • Operating the LM3710XKMM-463/NOPB at high temperatures can reduce its lifespan and affect its performance. High temperatures can also increase the risk of thermal runaway. Ensure proper heat sinking and thermal management to keep the device within the recommended operating temperature range.
  • Handle the device by the body or use an anti-static wrist strap to prevent electrostatic discharge (ESD). Use ESD-protected workstations and follow proper ESD handling procedures to prevent damage during assembly and testing.
  • When paralleling multiple LM3710XKMM-463/NOPB devices, ensure that each device has its own current sense resistor and that the devices are properly synchronized. Use a common clock signal and ensure that the devices are properly matched to prevent current imbalance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM3710XKMM-463/NOPB Overview

Use the download button to access the LM3710XKMM-463/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM371, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
