LM3710YQMM-232/NOPB - Texas Instruments

Description: Reset IC / Voltage Supervisor with Power Fail Input, Low Line Output, Manual Reset & Watch Dog Timer

Download LM3710YQMM-232/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

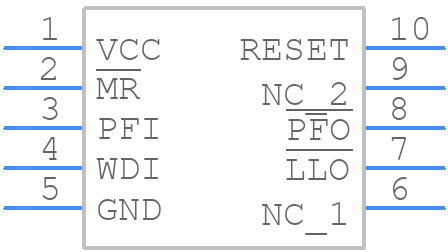

LM3710YQMM-232/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM3710YQMM-232/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
LM3710YQMM-232/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

LM3710YQMM-232/NOPB Details

  • Manufacturer Part Number:

    LM3710YQMM-232/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:Y;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.32V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM3710YQMM-232/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended for optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet. Additionally, ensure good airflow and thermal conduction to the heat sink.
  • Texas Instruments recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for optimal performance. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ripple.
  • To troubleshoot output voltage instability or oscillation issues, check the input voltage, output load, and PCB layout for any anomalies. Ensure that the input capacitor is properly sized and placed, and that the output filter components are properly selected and placed. Also, check for any noise or ripple on the input or output lines.
  • Texas Instruments recommends using a simple LC filter with a 10uH inductor and a 10uF capacitor for optimal performance. The filter components should be placed as close as possible to the output pins to minimize noise and ripple.
