LM385DG4-1-2 - Texas Instruments

Description: LM385DG4-1-2, Precision Voltage Reference 1.21 to 1.26V, 2% 20mA 8-Pin SOIC

Download LM385DG4-1-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

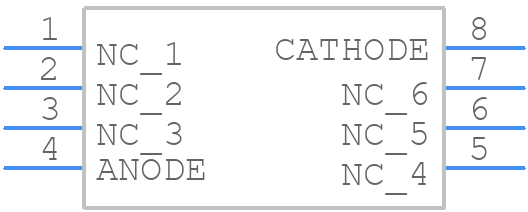

LM385DG4-1-2 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM385DG4-1-2 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
LM385DG4-1-2 - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

LM385DG4-1-2 Details

  • Manufacturer Part Number:

    LM385DG4-1-2

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    1.26 V

  • Output Voltage-Min:

    1.21 V

  • Output Voltage-Nom:

    1.235 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    20 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.9 mm

LM385DG4-1-2 Frequently Asked Questions (FAQs)

  • The typical output impedance of the LM385DG4-1.2 is around 0.2 ohms, which is relatively low and makes it suitable for applications where a stable voltage reference is required.
  • When the input voltage is below the minimum recommended value of 4.5V, the LM385DG4-1.2 may not function properly and the output voltage may not be regulated. It's recommended to ensure that the input voltage is within the specified range for proper operation.
  • While the LM385DG4-1.2 can provide a stable voltage reference, it's not designed to be used as a voltage regulator. It's intended for use as a voltage reference in applications such as analog-to-digital converters, digital-to-analog converters, and other precision voltage-sensitive circuits.
  • The output voltage of the LM385DG4-1.2 has a temperature coefficient of around 20 ppm/°C, which means that the output voltage will change by approximately 0.002% for every 1°C change in temperature. This is relatively low and makes the device suitable for applications where temperature stability is important.
  • The LM385DG4-1.2 is a commercial-grade device and may not be suitable for high-reliability or high-temperature applications. Texas Instruments offers other voltage reference devices that are specifically designed for high-reliability and high-temperature applications, such as the LM385M-1.2 or the LM4132-1.2.
