LM386M-1/NOPB - Texas Instruments

Description: Wide Input Voltage Low Power Audio Amplifier with Internal Gain

Download LM386M-1/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

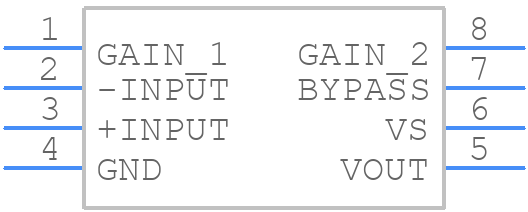

Symbol
LM386M-1/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM386M-1/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - +soic d
click to zoom
3D Models
LM386M-1/NOPB - Texas Instruments - 3D model - Small Outline Packages - +soic d
click to zoom

LM386M-1/NOPB Details

  • Manufacturer Part Number:

    LM386M-1/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Malaysia, Mexico, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    300 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    0.325 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    12 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

LM386M-1/NOPB Frequently Asked Questions (FAQs)

  • The maximum power supply voltage for the LM386M-1/NOPB is 15V. Exceeding this voltage may damage the device.
  • The gain of the LM386M-1/NOPB can be set using an external resistor and capacitor network. A gain of 20 is the default, but it can be increased to 50 or 200 by adding external components. Choose a gain that meets your application's requirements.
  • The minimum voltage required for the LM386M-1/NOPB to operate is 4V. However, the device may not function optimally at this voltage, and a minimum of 6V is recommended for most applications.
  • While the LM386M-1/NOPB can be used as a line driver, it's not the most suitable device for this application. The device is primarily designed as an audio power amplifier, and its output impedance is not optimized for driving long cables.
  • To reduce noise and hum, ensure that the power supply is well-regulated and decoupled, use a low-ESR capacitor for the power supply bypass, and keep the input and output traces as short as possible. Additionally, consider adding a noise filter or a ferrite bead to the power supply lines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM386M-1/NOPB Overview

Use the download button to access the LM386M-1/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM386, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
