LM386N-3 - Texas Instruments

Description: TEXAS INSTRUMENTS - LM386N-3 - Audio Power Amplifier, 500 mW, 1 Channel, 4V to 12V, DIP, 8 Pins

Download LM386N-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

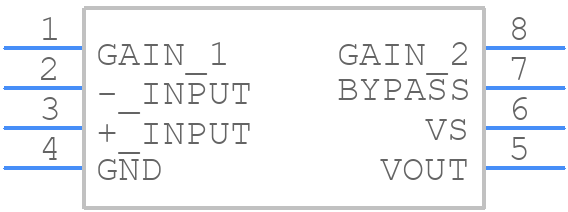

LM386N-3 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM386N-3 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
LM386N-3 - Texas Instruments - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

LM386N-3 Details

  • Manufacturer Part Number:

    LM386N-3

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Bandwidth-Nom:

    300 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    46 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.817 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    0.7 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max (Vsup):

    12 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

LM386N-3 Frequently Asked Questions (FAQs)

  • The maximum power supply voltage for the LM386N-3 is 15V. Exceeding this voltage can cause damage to the IC.
  • The gain of the LM386N-3 can be set using an external resistor and capacitor network. A gain of 20 is the default, but it can be increased to 50 or 200 by adding external components. The gain required depends on the specific application and the desired output power.
  • The minimum voltage required for the LM386N-3 to operate is 4V. However, the IC may not operate at its optimal performance at this voltage, and the output power may be reduced.
  • No, the LM386N-3 is a mono amplifier and cannot be used as a stereo amplifier. It is designed to amplify a single audio channel.
  • To prevent oscillation and instability, ensure that the input and output circuits are properly decoupled, and that the power supply is well-regulated. Additionally, use a bypass capacitor between the power supply pins to reduce noise and oscillation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM386N-3 Overview

Use the download button to access the LM386N-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM386, or try a keyword search, such as Audio/Video Amplifiers
