The maximum power dissipation of the LM3875 is dependent on the thermal resistance of the package and the ambient temperature. According to the datasheet, the maximum power dissipation is 2.5W for the TF package. However, this can be increased by using a heat sink or by reducing the ambient temperature.
To ensure stability in the LM3875, it is recommended to use a minimum output capacitance of 100nF, and to place the output capacitor close to the output pin. Additionally, the input capacitor should be placed close to the input pin, and the power supply lines should be decoupled with a 10uF capacitor.
The minimum input voltage required for the LM3875 is 7V, but it is recommended to use a minimum input voltage of 8V to ensure proper operation.
Yes, the LM3875 can be used as a voltage regulator, but it is not recommended as it is primarily designed as an audio power amplifier. If you need a voltage regulator, it is recommended to use a dedicated voltage regulator IC such as the 78L05 or the TLV703.
To protect the LM3875 from overheating, it is recommended to use a heat sink, reduce the ambient temperature, and ensure good airflow around the device. Additionally, the device should be operated within the recommended power dissipation limits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3875TF/NOPB Overview

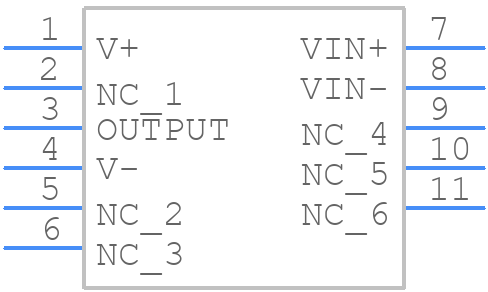

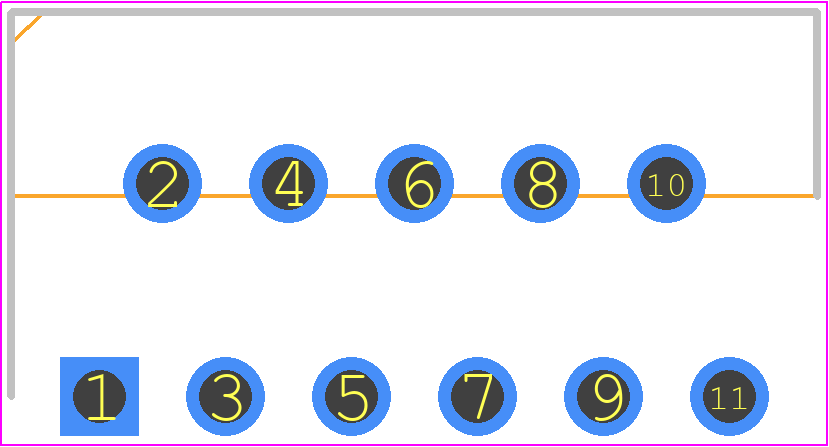

Use the download button to access the LM3875TF/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM387,
or try a keyword search, such as Audio/Video Amplifiers
