LM3876TF/NOPB - Texas Instruments

Description: Texas Instruments LM3876TF/NOPB Audio Amplifier, Class-B Mono 8MHz 80dB, 11-Pin TO-220

Download LM3876TF/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

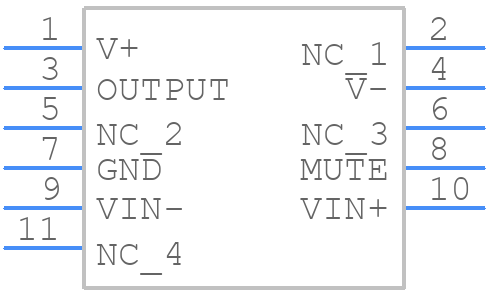

Symbol
LM3876TF/NOPB - Texas Instruments - PCB symbol
click to zoom

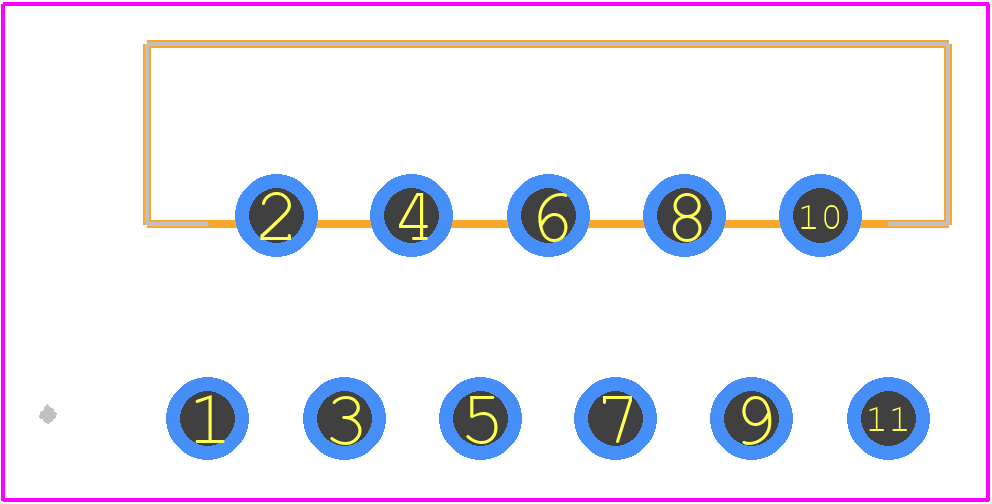

PCB Footprints
LM3876TF/NOPB - Texas Instruments PCB footprint - Other - Other - NDA0011B
click to zoom
3D Models
LM3876TF/NOPB - Texas Instruments - 3D model - Other - NDA0011B
click to zoom

LM3876TF/NOPB Details

  • Manufacturer Part Number:

    LM3876TF/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SFM

  • Package Description:

    ROHS COMPLIANT, ISOLATED, PLASTIC, TO-220, 11 PIN

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    26 dB

  • Harmonic Distortion:

    0.1%

  • JESD-30 Code:

    R-PZIP-T11

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Power-Nom:

    56 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP11,.2,.17,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Max (Vsup):

    42 V

  • Supply Voltage-Min (Vsup):

    12 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

LM3876TF/NOPB Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LM3876TF/NOPB is dependent on the thermal resistance of the package and the ambient temperature. According to the datasheet, the maximum power dissipation is approximately 2.5W at 25°C ambient temperature.
  • To ensure stability in the LM3876TF/NOPB, it is recommended to use a minimum output capacitance of 100nF, and to place the output capacitor close to the output pin. Additionally, the input capacitor should be placed close to the input pin, and the power supply decoupling capacitors should be placed close to the power supply pins.
  • The recommended input voltage range for the LM3876TF/NOPB is 4.5V to 12V. Operating the device outside of this range may affect its performance and reliability.
  • The LM3876TF/NOPB is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may be affected at high temperatures. It is recommended to derate the power supply voltage and output current at high temperatures to ensure reliable operation.
  • To protect the LM3876TF/NOPB from overvoltage and undervoltage conditions, it is recommended to use voltage regulators or overvoltage protection circuits at the input. Additionally, undervoltage lockout (UVLO) circuits can be used to prevent the device from operating at low input voltages.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM3876TF/NOPB Overview

Use the download button to access the LM3876TF/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM387, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
