LM3881MMX/NOPB - Texas Instruments

Description: 3 Rail Simple Power Sequencer with Adjustable Time Delay

Download LM3881MMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

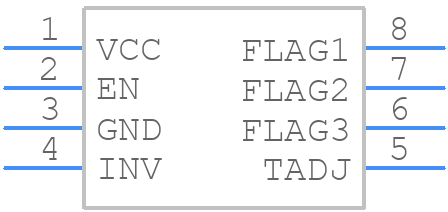

LM3881MMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM3881MMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP-8
click to zoom
3D Models
LM3881MMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - VSSOP-8
click to zoom

LM3881MMX/NOPB Details

  • Manufacturer Part Number:

    LM3881MMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.22

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM3881MMX/NOPB Frequently Asked Questions (FAQs)

  • TI recommends using a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close as possible to the power pins (VIN and GND) to ensure stable operation.
  • The gain of the LM3881 can be optimized by adjusting the values of the feedback resistors (Rf and Ri) and the input capacitor (Ci). A higher gain can be achieved by increasing the ratio of Rf to Ri, while a lower gain can be achieved by decreasing the ratio.
  • The maximum power dissipation of the LM3881 is 20W, assuming a junction temperature of 150°C. However, this value can be derated based on the ambient temperature and the thermal resistance of the package.
  • Yes, the LM3881 can be used as a headphone amplifier, but it's essential to ensure that the output power is limited to avoid damaging the headphones or the amplifier. A maximum output power of 1W per channel is recommended for headphone applications.
  • To protect the LM3881 from overvoltage and undervoltage conditions, TI recommends using a voltage regulator or a voltage supervisor to ensure that the input voltage remains within the recommended operating range of 9V to 12V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM3881MMX/NOPB Overview

Use the download button to access the LM3881MMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM388, or try a keyword search, such as Power Management Circuits

About Texas Instruments
