LM4040AIZ-4.1/NOPB - Texas Instruments

Description: Voltage References PREC MICROPWR SHUNT VLTG REF

Download LM4040AIZ-4.1/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

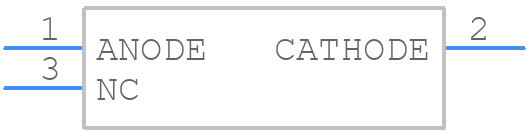

LM4040AIZ-4.1/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

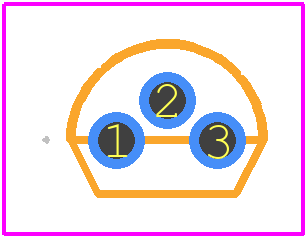

LM4040AIZ-4.1/NOPB - Texas Instruments PCB footprint - Other - Other - LP0003A_2020
click to zoom
3D Models
LM4040AIZ-4.1/NOPB - Texas Instruments - 3D model - Other - LP0003A_2020
click to zoom

LM4040AIZ-4.1/NOPB Details

  • Manufacturer Part Number:

    LM4040AIZ-4.1/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-92

  • Pin Count:

    3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    1992-01-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    O-PBCY-T3

  • JESD-609 Code:

    e3

  • Length:

    4.3 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    4.127 V

  • Output Voltage-Min:

    4.065 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-92

  • Package Equivalence Code:

    SIP3,.1,50

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    100 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    4.3 mm

LM4040AIZ-4.1/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the input and output pins as close as possible to minimize noise. Use a solid ground plane and keep the voltage regulator away from high-current carrying traces. Additionally, use a 10uF capacitor on the input and a 10uF capacitor on the output to filter out noise and ensure stability.
  • To ensure stability, make sure to use the recommended output capacitor value and type (e.g., 10uF ceramic capacitor). Also, ensure that the input capacitor is properly sized and placed close to the input pin. Additionally, avoid using long traces and keep the output capacitor close to the output pin.
  • The maximum input voltage for the LM4040AIZ-4.1/NOPB is 20V. Exceeding this voltage may cause damage to the device.
  • The LM4040AIZ-4.1/NOPB is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliable operation.
  • The power dissipation of the LM4040AIZ-4.1/NOPB can be calculated using the formula: Pd = (Vin - Vout) x Iout. Where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM4040AIZ-4.1/NOPB Overview

Use the download button to access the LM4040AIZ-4.1/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM404, or try a keyword search, such as Voltage References

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
