LM431ACM3X/NOPB - Texas Instruments

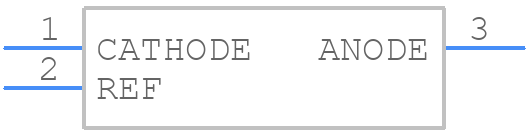

LM431ACM3X/NOPB Details

• Manufacturer Part Number:

  LM431ACM3X/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOT-23

• Pin Count:

  3

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog IC - Other Type:

  TWO TERMINAL VOLTAGE REFERENCE

• JESD-30 Code:

  R-PDSO-G3

• JESD-609 Code:

  e3

• Length:

  2.92 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  3

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.1 A

• Output Voltage-Max:

  2.55 V

• Output Voltage-Min:

  2.44 V

• Output Voltage-Nom:

  2.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSOP

• Package Equivalence Code:

  TO-236

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.12 mm

• Supply Voltage-Max (Vsup):

  37 V

• Supply Voltage-Min (Vsup):

  2.44 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temp Coef of Voltage-Max:

  97 ppm/°C

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.95 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Trim/Adjustable Output:

  YES

• Width:

  1.3 mm
