Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for op-amp layout, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic capacitance.
To ensure stability, make sure to follow the recommended compensation capacitor values and placement, and consider using a zero-nulling resistor to reduce oscillations. Additionally, ensure that the feedback loop has sufficient phase margin and gain margin.
The maximum power dissipation of the LM432MA is dependent on the package type and ambient temperature. For the NOPB package, the maximum power dissipation is 1.4W at 25°C. However, it's recommended to derate the power dissipation based on the operating temperature and package type.
While the LM432MA is an op-amp, it can be used as a comparator in certain applications. However, it's not recommended for high-speed or high-frequency comparator applications due to its limited slew rate and bandwidth. Additionally, the output stage is not optimized for comparator operation, and the device may not provide the same level of hysteresis as a dedicated comparator.
The LM432MA has internal ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-free environment. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the input and output pins.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM432MA/NOPB Overview

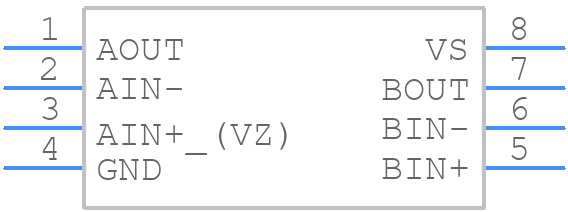

Use the download button to access the LM432MA/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM432,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
