Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
The LM432MAX requires a specific bias voltage and current to operate optimally. Ensure that the input voltage is within the recommended range (2.7V to 5.5V) and that the bias current is set correctly (typically 10uA to 100uA). Refer to the datasheet for specific biasing requirements.
The maximum power dissipation of the LM432MAX is dependent on the package type and ambient temperature. For the NOPB package, the maximum power dissipation is 1.4W at 25°C. However, it's essential to calculate the power dissipation based on the specific application and ensure that the device is operated within the recommended temperature range.
The LM432MAX is rated for operation up to 125°C, but it's essential to consider the device's power dissipation, thermal resistance, and package type when operating in high-temperature environments. Ensure that the device is properly heat-sinked and operated within the recommended temperature range to prevent thermal shutdown or damage.
To troubleshoot issues with the LM432MAX, start by verifying the input voltage, bias current, and output load. Check for any signs of oscillation, such as excessive current consumption or noise on the output. Use oscilloscopes and spectrum analyzers to analyze the output signal and identify any issues. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM432MAX/NOPB Overview

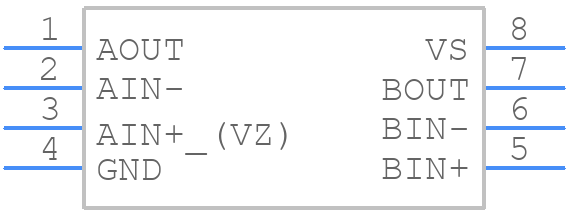

Use the download button to access the LM432MAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM432,
or try a keyword search, such as Operational Amplifiers
