A good PCB layout for the LM4510SDX/NOPB involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the power supply. Additionally, using a 4-layer PCB with a dedicated ground plane can help reduce EMI.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, use a low-ESR capacitor for the output filter, and ensure the input and output capacitors are properly decoupled. Also, avoid using a capacitor with high ESL (Equivalent Series Inductance) in the output filter.
The LM4510SDX/NOPB can handle a maximum input voltage of 18V. However, it's recommended to operate the device within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
The LM4510SDX/NOPB is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and thermal design to prevent overheating.
To troubleshoot issues with the LM4510SDX/NOPB, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values against the recommended design. Use an oscilloscope to observe the output voltage and current waveforms. Also, ensure the device is properly decoupled and the input and output capacitors are suitable for the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4510SDX/NOPB Overview

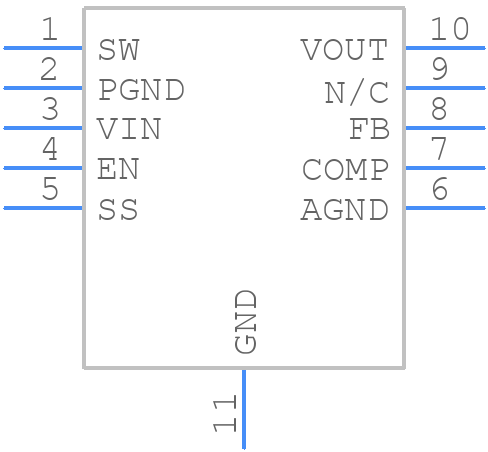

Use the download button to access the LM4510SDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM451,
or try a keyword search, such as Switching Regulator or Controllers
