LM4550BVH/NOPB - Texas Instruments

Description: AC '97 Rev 2.1 Codec with Sample Rate Conversion and National 3D Sound

Download LM4550BVH/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

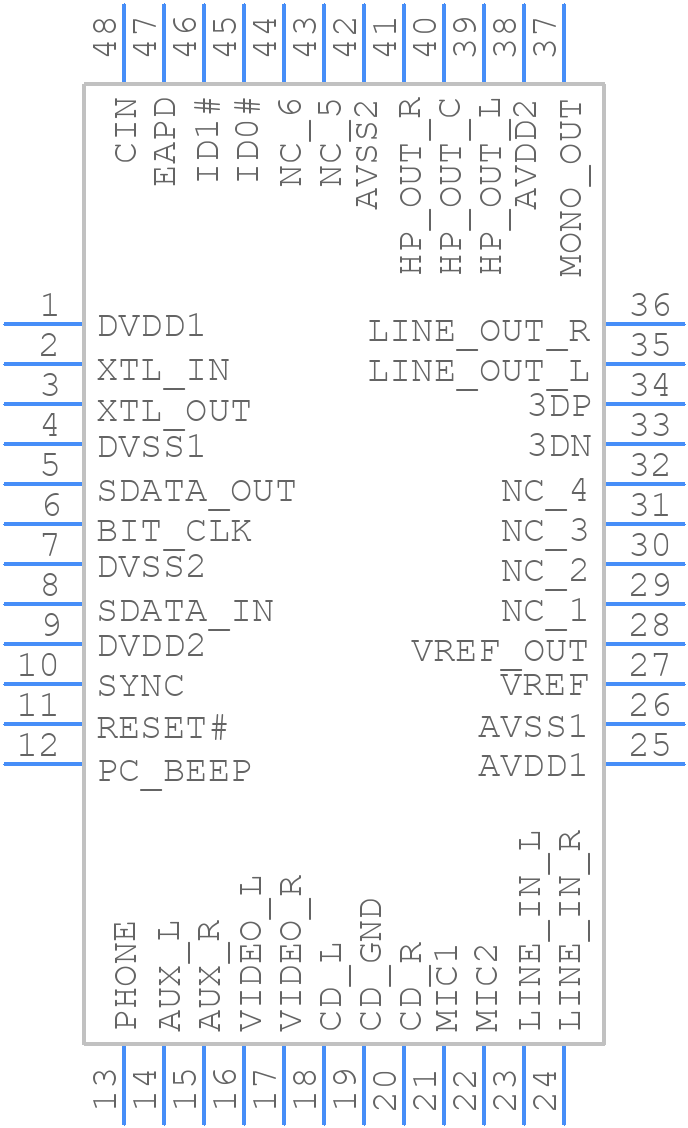

LM4550BVH/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM4550BVH/NOPB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PT (S-PQFP-G48)-
click to zoom
3D Models
LM4550BVH/NOPB - Texas Instruments - 3D model - Quad Flat Packages - PT (S-PQFP-G48)-
click to zoom

LM4550BVH/NOPB Details

  • Manufacturer Part Number:

    LM4550BVH/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRES 3V TO 5.5V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.4 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LM4550BVH/NOPB Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply the power supply voltage (VCC) before applying the audio signal. This ensures that the internal biasing and voltage regulators are stable before the audio signal is applied.
  • The gain of the LM4550 can be optimized by adjusting the values of the external resistors (R1 and R2) and capacitors (C1 and C2) in the feedback network. The gain can be calculated using the formula: Gain = (R2/R1) * (C2/C1).
  • The maximum power dissipation of the LM4550 is 1.4W. This is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RθJA) of 125°C/W.
  • Yes, the LM4550 can be used as a headphone amplifier. However, it's essential to ensure that the output power is limited to avoid damaging the headphones or the amplifier. A maximum output power of 100mW per channel is recommended.
  • To reduce noise and hum, ensure that the power supply is well-regulated and decoupled, use a low-noise voltage regulator, and add bypass capacitors to the power supply lines. Additionally, use shielded cables and keep the audio signal lines away from the power supply lines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM4550BVH/NOPB Overview

Use the download button to access the LM4550BVH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM455, or try a keyword search, such as Other Consumer ICs
