- Part Number LM4652TF
- Manufacturer Texas Instruments
- Pin Count 15
- Part Category Integrated Circuit
- Package Category Transistor Outline, Vertical

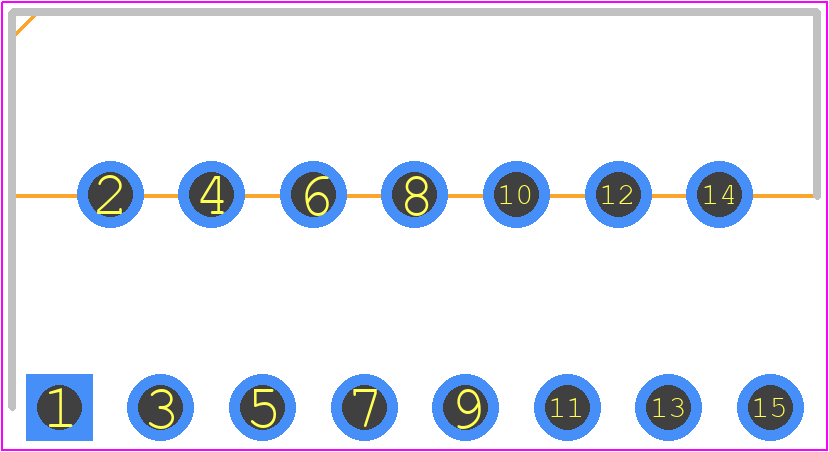

- Footprint Name Transistor Outline, Vertical - TF15B
- Released Date Feb 5, 2024
- Last Modified Date Feb 5, 2024 2:34 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM4652TF Details
-
Manufacturer Part Number:
LM4652TF
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SFM
-
Pin Count:
3
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Consumer IC Type:
AUDIO AMPLIFIER
LM4652TF Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, trace routing, and grounding to minimize EMI and noise.
-
The selection of input and output capacitors depends on the specific application requirements. TI recommends using X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage. The output capacitor should be selected based on the desired output ripple voltage and transient response.
-
The LM4652TF is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. TI recommends following the thermal design guidelines in the datasheet to ensure reliable operation.
-
Yes, the LM4652TF is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is available in a variety of packages, including a 20-pin HTSSOP package with enhanced thermal performance.
-
TI provides a troubleshooting guide in the application note SLVAE03, which covers common issues and their solutions. Additionally, the TI E2E community forum is a valuable resource for engineers to ask questions and share experiences with the LM4652TF.
Trust Checks
Community Provided
System Verified
Community Approved
LM4652TF Overview

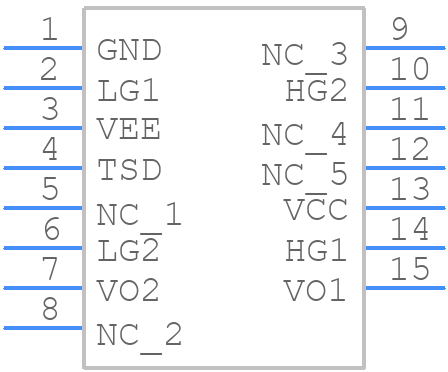

Use the download button to access the LM4652TF schematic symbol, PCB footprint, and 3D model.
