Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the power traces short and wide, using a solid ground plane, and minimizing vias and thermal reliefs.
The choice of inductor depends on the specific application and requirements. Consider factors such as inductance value, DC resistance, and saturation current. Texas Instruments provides a list of recommended inductors in the datasheet, but it's also important to consult with inductor manufacturers for specific recommendations.
The maximum ambient temperature for the LM4670SD is 85°C, but this can be derated based on the specific application and thermal design. It's important to consider the thermal performance of the device and the overall system to ensure reliable operation.
Yes, the LM4670SD is qualified for automotive and high-reliability applications, but it's important to follow the specific requirements and guidelines for these applications, such as AEC-Q100 and ISO 26262. Additionally, Texas Instruments provides specific documentation and support for these applications.
Troubleshooting issues with the LM4670SD typically involves checking the power supply, output voltage, and current, as well as verifying the PCB layout and component selection. Texas Instruments provides a troubleshooting guide in the datasheet, and it's also recommended to consult with TI's technical support team for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4670SD Overview

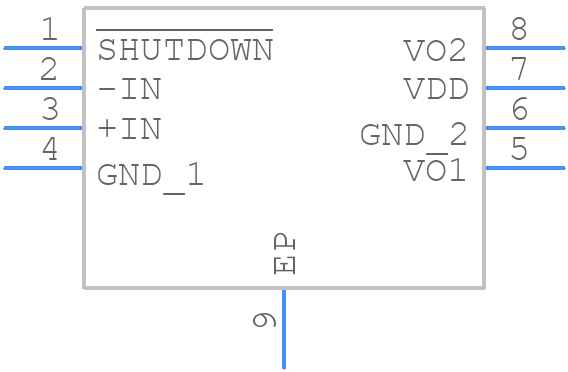

Use the download button to access the LM4670SD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM467,
or try a keyword search, such as Audio/Video Amplifiers
