Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for audio amplifier PCB design, such as keeping the signal path short, using a solid ground plane, and minimizing noise coupling.
To ensure the LM4674ATL/NOPB operates within its thermal limits, calculate the maximum power dissipation based on the output power and supply voltage, and ensure the device is mounted on a suitable heat sink or PCB with adequate thermal dissipation. Monitor the device temperature and adjust the design as needed.
The maximum output power of the LM4674ATL/NOPB depends on the supply voltage, load impedance, and thermal considerations. According to the datasheet, the maximum output power is 2.5W per channel into a 4Ω load with a 5V supply. However, this can be increased with a higher supply voltage or optimized PCB design.
To filter out noise and EMI, use a combination of techniques such as decoupling capacitors, ferrite beads, and shielding. Ensure the power supply is well-regulated and use a low-pass filter on the output to reduce high-frequency noise. Additionally, follow good PCB design practices to minimize noise coupling and radiation.
Yes, the LM4674ATL/NOPB can be used in a bridged configuration to increase the output power. However, this requires careful design and layout to ensure the devices are properly matched and the output is properly terminated. Consult the datasheet and application notes for more information.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM4674ATL/NOPB Overview

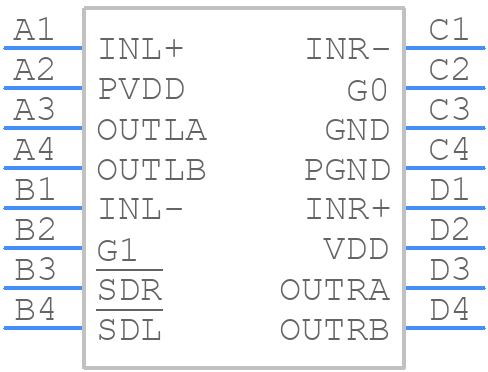

Use the download button to access the LM4674ATL/NOPB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LM467,
or try a keyword search, such as Audio/Video Amplifiers
