Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for audio PCB design, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and widths.
The LM4674ATLX/NOPB has a thermal shutdown feature that turns off the device when it exceeds a junction temperature of 150°C. To ensure operation within thermal limits, ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout to minimize thermal resistance.
While the datasheet specifies a maximum input voltage of 12V, it's recommended to limit the input voltage to 10V to ensure reliable operation and prevent damage to the device.
Yes, the LM4674ATLX/NOPB can be used in a stereo audio application by using two devices, one for each channel. However, it's essential to ensure that the devices are properly synchronized and that the layout is designed to minimize crosstalk and noise.
To troubleshoot issues with the LM4674ATLX/NOPB, start by checking the power supply voltage, input signal integrity, and PCB layout. Use an oscilloscope to measure the output signal and look for signs of distortion or noise. Also, ensure that the device is properly bypassed and that the input and output capacitors are of high quality.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4674ATLX/NOPB Overview

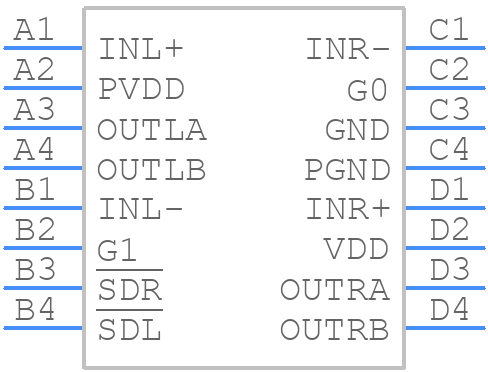

Use the download button to access the LM4674ATLX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM467,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
