A good PCB layout for the LM4675SD/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a star-ground configuration to reduce noise and EMI.
The choice of input and output capacitors for the LM4675SD/NOPB depends on the specific application and operating conditions. In general, X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor.
The LM4675SD/NOPB has an operating ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
To ensure the LM4675SD/NOPB is stable and doesn't oscillate, it's recommended to follow the layout guidelines in the datasheet, use a sufficient output capacitor value, and ensure the input voltage is within the recommended range. Additionally, the device's stability can be improved by adding a small resistor (e.g. 10Ω) in series with the output capacitor.
The maximum output current of the LM4675SD/NOPB is 2A. However, the device's output current capability may be limited by the input voltage, output voltage, and ambient temperature. It's recommended to check the device's thermal performance and output current capability in the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4675SD/NOPB Overview

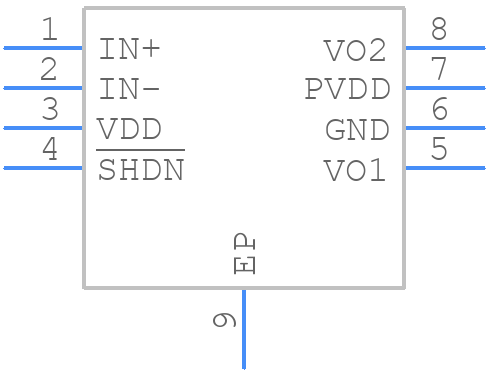

Use the download button to access the LM4675SD/NOPB schematic symbol, PCB footprint, and 3D model.
