- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM4766T
- Part Number LM4766T
- Manufacturer Texas Instruments
- Pin Count 15
- Part Category Integrated Circuit
- Package Category Transistor Outline, Vertical
- Footprint Name Transistor Outline, Vertical - NDL0015A
- Released Date Oct 1, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM4766T Details
-
Manufacturer Part Number:
LM4766T
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SFM
-
Package Description:
NON ISOLATED, PLASTIC, TO-220, 15 PIN
-
Pin Count:
3
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Bandwidth-Nom:
20 kHz
LM4766T Frequently Asked Questions (FAQs)
-
The maximum power dissipation of the LM4766T depends on the package type and thermal conditions. For the TO-220 package, the maximum power dissipation is 20W. However, it's recommended to derate the power dissipation based on the ambient temperature and heat sink used.
-
Yes, the LM4766T can be used as a subwoofer amplifier due to its high power output and low distortion. However, it's essential to ensure that the amplifier is properly heat-sinked and that the power supply is capable of delivering the required current.
-
To protect the LM4766T from overheating, ensure that the device is properly heat-sinked, and the ambient temperature is within the recommended operating range. You can also use thermal shutdown circuits or temperature sensors to monitor the device temperature and shut it down if it exceeds a certain threshold.
-
Yes, the LM4766T can be used in a bridged configuration to increase the power output. However, it's essential to ensure that the amplifier is properly configured and that the power supply is capable of delivering the required current. Additionally, the output impedance of the amplifier should be matched to the load impedance to avoid overheating and distortion.
-
The minimum supply voltage required for the LM4766T is 5V. However, the recommended operating voltage range is 10V to 40V. Operating the device at lower voltages may affect its performance and stability.
Trust Checks
Community Provided
System Verified
Community Approved
LM4766T Overview

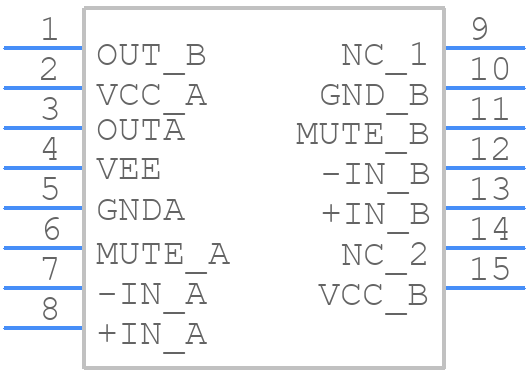

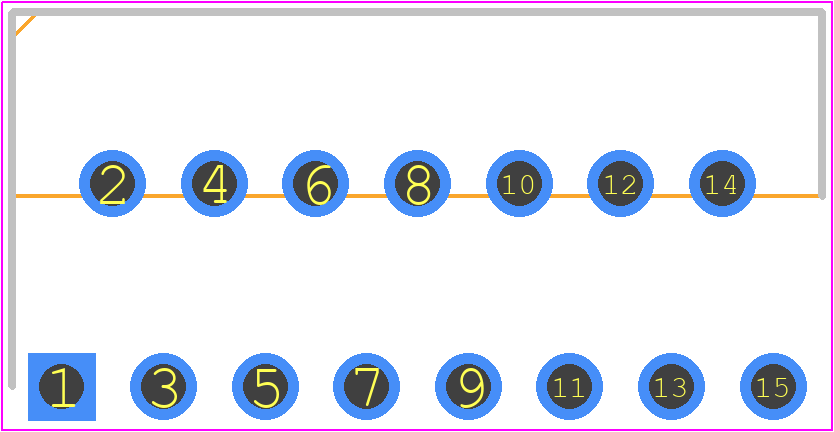

Use the download button to access the LM4766T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM476,
or try a keyword search, such as Audio/Video Amplifiers
