A good PCB layout for the LM4780TA/NOPB involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the IC. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
The output filter components (L, C, and R) should be chosen based on the desired cutoff frequency, output impedance, and ripple attenuation. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements.
The maximum power dissipation of the LM4780TA/NOPB is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
The LM4780TA/NOPB is rated for operation up to 85°C ambient temperature. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the power dissipation and ensure proper heat sinking to ensure reliable operation in high-temperature environments.
Oscillations or instability issues with the LM4780TA/NOPB can be caused by improper PCB layout, inadequate decoupling, or incorrect component selection. To troubleshoot, check the PCB layout, ensure proper decoupling, and verify the component values. Also, check for any signs of overheating or excessive power dissipation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4780TA/NOPB Overview

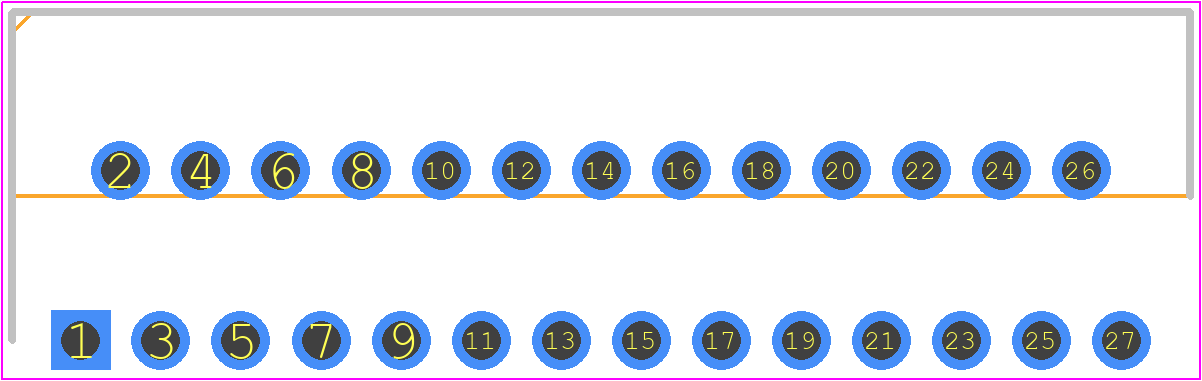

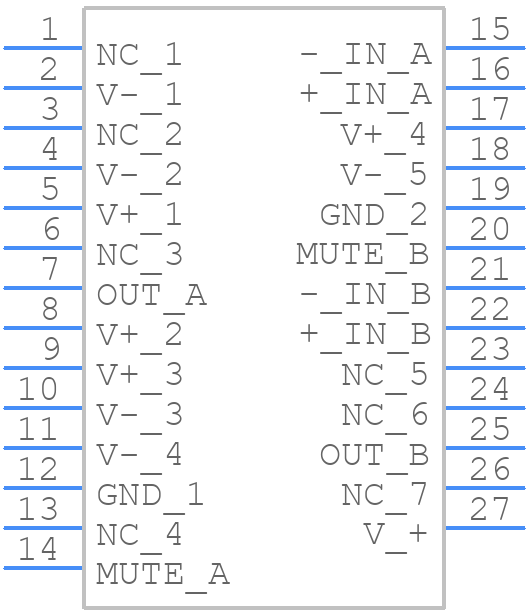

Use the download button to access the LM4780TA/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM478,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
