Texas Instruments provides a recommended PCB layout in the datasheet, which includes keeping the input and output traces short and away from each other, using a ground plane, and placing decoupling capacitors close to the IC. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The LM4782TA/NOPB has a built-in thermal shutdown feature that turns off the IC when the junction temperature exceeds 150°C. To prevent overheating, ensure good airflow around the IC, use a heat sink if necessary, and keep the ambient temperature below 70°C. Also, make sure to follow the recommended power supply and output stage design to minimize power dissipation.
Yes, the LM4782TA/NOPB can be used in a bridged configuration to increase the output power. However, this requires careful design and layout to ensure that the two channels are properly synchronized and that the output stages are properly biased. Texas Instruments provides a bridged amplifier application circuit in the datasheet.
The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR electrolytic capacitor or a film capacitor. The input capacitor should be placed close to the IC and connected between the input pin and the ground pin.
Common issues with the LM4782TA/NOPB can be troubleshooted by checking the power supply voltage, output stage biasing, and input signal integrity. Also, check for proper PCB layout and decoupling, and ensure that the IC is not overheating. Texas Instruments provides a troubleshooting guide in the datasheet and application notes.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4782TA/NOPB Overview

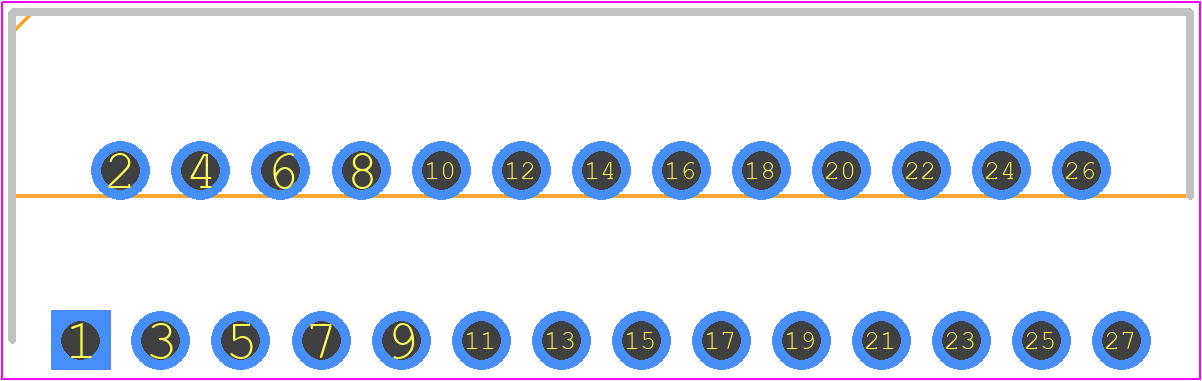

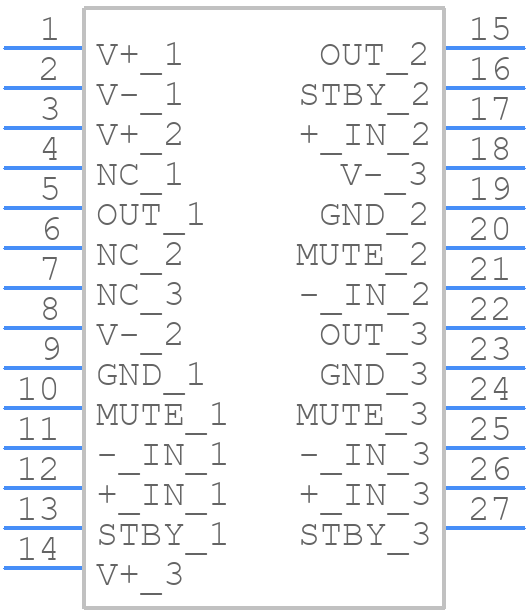

Use the download button to access the LM4782TA/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM478,
or try a keyword search, such as Audio/Video Amplifiers
