A good PCB layout for the LM4808M/NOPB involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a star-ground configuration and to avoid routing high-frequency signals near the device.
The choice of input and output capacitors for the LM4808M/NOPB depends on the specific application and operating conditions. In general, X7R or X5R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage are recommended. The capacitance value should be chosen based on the desired ripple voltage and output impedance.
The LM4808M/NOPB is rated for operation from -40°C to 85°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's power dissipation and operating frequency at high temperatures.
Yes, the LM4808M/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a qualified process. However, it's recommended to consult with Texas Instruments' application engineers to ensure the device meets the specific requirements of the application.
Common issues with the LM4808M/NOPB can often be traced back to poor PCB layout, inadequate decoupling, or incorrect component selection. To troubleshoot, start by verifying the PCB layout and decoupling, then check the input and output voltage waveforms using an oscilloscope. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4808M/NOPB Overview

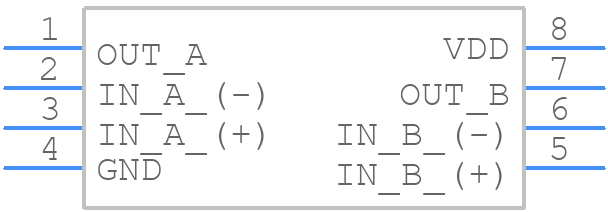

Use the download button to access the LM4808M/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM480,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
