LM4808MMX/NOPB - Texas Instruments

Description: LM4808 Dual 105 mW Headphone Amplifier

Download LM4808MMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

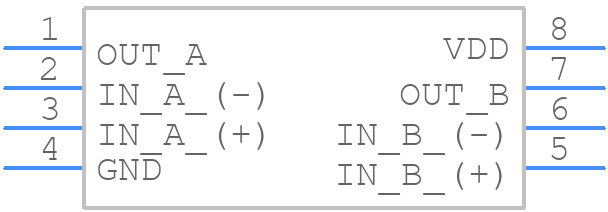

LM4808MMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM4808MMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
LM4808MMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

LM4808MMX/NOPB Details

  • Manufacturer Part Number:

    LM4808MMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.105 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM4808MMX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM4808MMX/NOPB involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a star-ground configuration and to avoid routing high-frequency signals near the device.
  • The choice of input and output capacitors for the LM4808MMX/NOPB depends on the specific application and operating conditions. In general, X7R or X5R ceramic capacitors with a voltage rating of at least 10V are recommended. The capacitance value should be chosen based on the desired cutoff frequency and the impedance of the circuit.
  • The maximum power dissipation of the LM4808MMX/NOPB is dependent on the ambient temperature and the thermal resistance of the package. The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
  • To ensure the stability of the LM4808MMX/NOPB, it's recommended to follow the guidelines in the datasheet for component selection and PCB layout. Additionally, the device should be operated within its recommended operating conditions, and the input and output capacitors should be chosen to ensure a stable output voltage.
  • The recommended input voltage range for the LM4808MMX/NOPB is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM4808MMX/NOPB Overview

Use the download button to access the LM4808MMX/NOPB schematic symbol, PCB footprint, and 3D model.
