A good PCB layout for the LM48100QMHX/NOPB should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour connectivity to dissipate heat. Avoid routing high-current traces under the device.
The output filter components (L, C, and R) should be chosen based on the application's frequency response, output power, and load impedance. TI provides a filter design tool to help with component selection. Additionally, consider the component's power rating, tolerance, and parasitic effects.
To ensure EMI and EMC compliance, use a shielded enclosure, keep the device and output filter components close together, and use a common-mode choke or ferrite bead on the output. Also, ensure proper grounding, decoupling, and bypassing of power supplies.
Use a voltage regulator or a voltage supervisor to ensure the device operates within the recommended voltage range (4.5V to 14V). Add overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients or faults.
For high-power applications, ensure good airflow around the device, use a heat sink with a thermal interface material, and consider using a fan or other cooling system. Monitor the device's junction temperature (TJ) and adjust the thermal design accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM48100QMHX/NOPB Overview

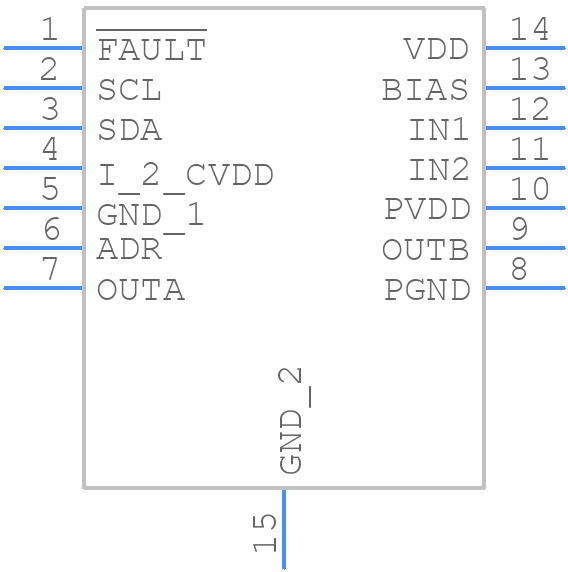

Use the download button to access the LM48100QMHX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM481,
or try a keyword search, such as Audio Control ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
