A good PCB layout for the LM4811MM/NOPB involves keeping the input and output traces separate, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a star-ground configuration and to avoid routing traces under the device.
The choice of input and output capacitors for the LM4811MM/NOPB depends on the specific application and the desired performance. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 1uF for the input capacitor and 2.2uF for the output capacitor.
The maximum power dissipation of the LM4811MM/NOPB is 1.4W. To ensure it doesn't overheat, it's recommended to provide adequate heat sinking, such as a copper plane or a heat sink, and to keep the device in a well-ventilated area. Additionally, the device should be operated within the recommended temperature range of -40°C to 85°C.
Yes, the LM4811MM/NOPB can be used in a stereo audio application. To configure it, you'll need to use two devices, one for each channel. The inputs should be connected in parallel, and the outputs should be connected to separate loads. Additionally, the gain of each channel should be set independently using the gain-setting resistors.
To troubleshoot common issues with the LM4811MM/NOPB, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, check the input and output capacitors for correct value and voltage rating. If oscillation is occurring, check for parasitic inductance in the input and output traces. If distortion is occurring, check the gain-setting resistors and ensure they are correctly valued.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4811MM/NOPB Overview

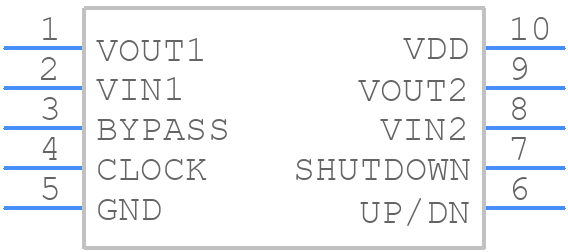

Use the download button to access the LM4811MM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM481,
or try a keyword search, such as Audio Control ICs
