Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the signal traces short and away from noise sources, using a solid ground plane, and decoupling the power supply pins.
Verify that the input voltage, output voltage, and output current are within the recommended operating ranges specified in the datasheet. Also, ensure that the device is operated within the recommended temperature range and that the thermal dissipation is adequate.
The LM48311TL/NOPB has a human body model (HBM) ESD rating of 2 kV and a charged device model (CDM) ESD rating of 1 kV. It's recommended to follow proper ESD handling procedures to prevent damage to the device.
The LM48311TL/NOPB is a commercial-grade device, but Texas Instruments offers a similar device, the LM48311QTL/NOPB, which is qualified for automotive and high-reliability applications. It's recommended to consult with Texas Instruments or a qualified distributor for more information.
Start by verifying that the device is properly connected and that the input and output voltages are within the recommended ranges. Check for proper decoupling, filtering, and layout. Use an oscilloscope to observe the output voltage and current waveforms. Consult the datasheet and application notes for troubleshooting guidelines and seek support from Texas Instruments or a qualified engineer if needed.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM48311TL/NOPB Overview

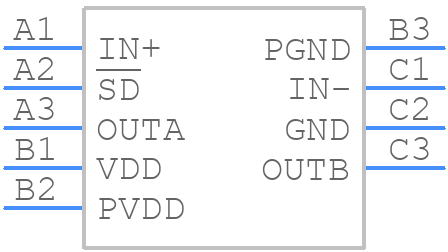

Use the download button to access the LM48311TL/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM483,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
Suggested Parts
If you searched for LM48311TL/NOPB, you might also be interested in these parts:
