Texas Instruments provides a recommended PCB layout in the application note SLVAU65, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The selection of the inductor depends on the output current, output voltage, and switching frequency. TI provides an inductor selection guide in the datasheet, and also recommends using inductors with a low DC resistance and high saturation current. Additionally, the inductor should be able to handle the peak current and have a suitable physical size and shape for the PCB layout.
Although the datasheet specifies a maximum input voltage of 15V, it's recommended to derate the input voltage to 13.5V to ensure reliable operation and to account for voltage spikes and transients. Exceeding the maximum input voltage can cause damage to the internal components and affect the regulator's performance and reliability.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, the output capacitor should be selected based on the output voltage and current, and the ESR (Equivalent Series Resistance) should be within the recommended range. TI also recommends adding a small ceramic capacitor (e.g., 10nF) between the VOUT and GND pins to improve stability.
The typical dropout voltage of the LM48411TL/NOPB is around 0.5V to 1.5V, depending on the output current and input voltage. However, this value can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more detailed information on dropout voltage and how to minimize it.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM48411TL/NOPB Overview

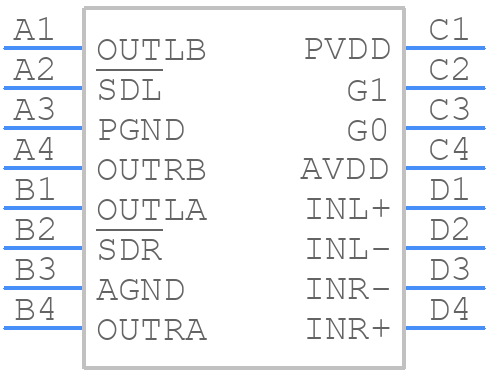

Use the download button to access the LM48411TL/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM484,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
