Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
To ensure stability, make sure to follow the recommended component values and layout guidelines, and also consider the output capacitance and ESR. Additionally, a small series resistor (e.g., 1-2 ohms) can be added between the output and the capacitor to improve stability.
The maximum input voltage is not explicitly stated in the datasheet, but it's generally recommended to keep the input voltage within the specified operating range (2.7V to 5.5V) to ensure reliable operation and prevent damage to the device.
The LM4853MMX/NOPB is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure that the device is properly heat-sinked to prevent overheating. Additionally, the device's performance may degrade at high temperatures, so it's recommended to consult the datasheet and application notes for more information.
To troubleshoot issues, start by verifying the input voltage, output load, and PCB layout. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or ringing. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM4853MMX/NOPB Overview

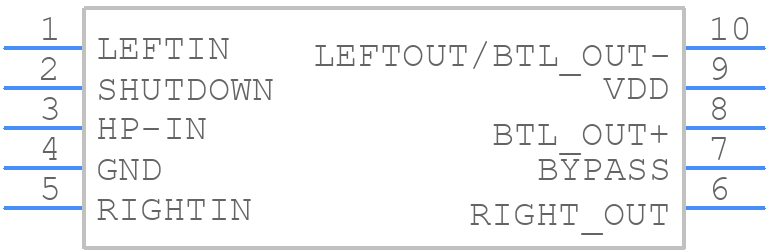

Use the download button to access the LM4853MMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM485,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
