Texas Instruments provides a recommended PCB layout for the LM48556TL/NOPB in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a solid ground plane, placing thermal vias under the device, and keeping the PCB layer stack-up symmetrical.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal management system to keep the junction temperature within the recommended range.
Using a different input capacitor value than recommended may affect the stability and performance of the device. A larger input capacitor can improve filtering but may increase the startup time, while a smaller capacitor may reduce the startup time but compromise filtering. It's essential to evaluate the trade-offs and ensure the chosen capacitor value meets the specific application requirements.
To troubleshoot issues with the device's output voltage regulation, start by verifying the input voltage, output load, and feedback connections. Check for any signs of overheating, and ensure the device is properly soldered and mounted. Use an oscilloscope to measure the output voltage and check for any oscillations or noise. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
The LM48556TL/NOPB is designed to meet EMI and RFI requirements, but it's still essential to follow good design practices to minimize electromagnetic interference. Use a solid ground plane, keep signal traces short and away from the device, and use shielding or filtering components as needed. Consult the datasheet and application notes for specific guidance on EMI and RFI considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM48556TL/NOPB Overview

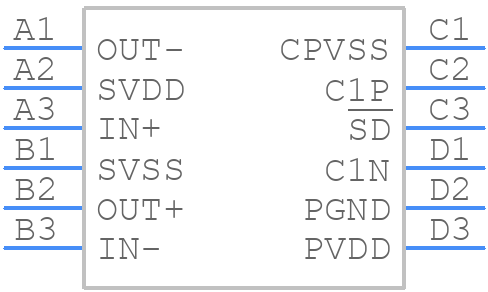

Use the download button to access the LM48556TL/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM485,
or try a keyword search, such as Audio/Video Amplifiers
