LM48556TLX/NOPB - Texas Instruments

Description: Audio Amp Speaker 1-CH Mono Class-AB 12-Pin uSMD T/R

Download LM48556TLX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

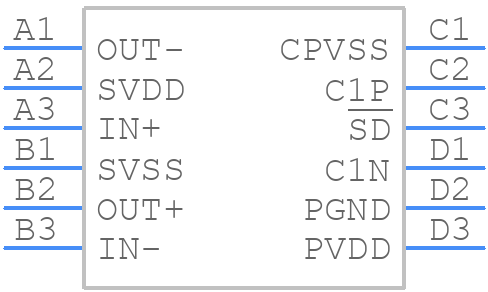

Symbol
LM48556TLX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM48556TLX/NOPB - Texas Instruments PCB footprint - BGA - BGA - YZR0012_2021
click to zoom
3D Models
LM48556TLX/NOPB - Texas Instruments - 3D model - BGA - YZR0012_2021
click to zoom

LM48556TLX/NOPB Details

  • Manufacturer Part Number:

    LM48556TLX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PBGA-B12

  • JESD-609 Code:

    e1

  • Length:

    1.9815 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.675 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.482 mm

LM48556TLX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout for the LM48556TLX/NOPB in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a solid ground plane, placing thermal vias under the device, and keeping the PCB layer stack-up symmetrical.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal management system to keep the device temperature within the recommended range.
  • The maximum allowed voltage on the input pins of the LM48556TLX/NOPB is the supply voltage (VCC) + 0.3V. Exceeding this voltage can cause damage to the device.
  • The LM48556TLX/NOPB has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
  • The recommended soldering temperature for the LM48556TLX/NOPB is 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to avoid damaging the device.
