LM48560TLX/NOPB - Texas Instruments

Description: Audio Amplifiers Hi Vltg Class H Cer Speaker Driver

Download LM48560TLX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

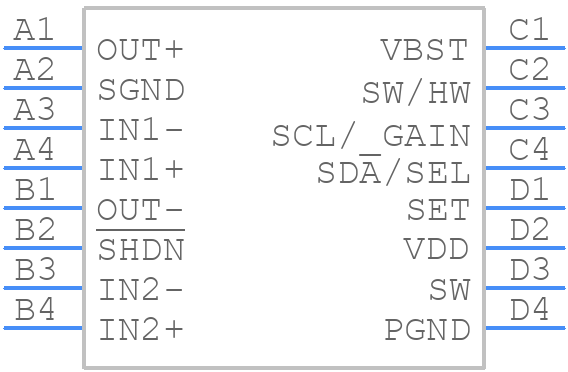

Symbol
LM48560TLX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM48560TLX/NOPB - Texas Instruments PCB footprint - BGA - BGA - 16-Pin DSBGA
click to zoom
3D Models
LM48560TLX/NOPB - Texas Instruments - 3D model - BGA - 16-Pin DSBGA
click to zoom

LM48560TLX/NOPB Details

  • Manufacturer Part Number:

    LM48560TLX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CLASS H AUDIO AMPLIFIER

  • Gain:

    30 dB

  • JESD-30 Code:

    R-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.675 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.3 mm

LM48560TLX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLVA883, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. TI also provides a capacitor selection tool to help with this process.
  • The maximum output current capability of the LM48560 is 1A, but it can be limited by the thermal performance of the PCB and the ambient temperature. It's essential to ensure the device operates within the recommended thermal boundaries to maintain reliability.
  • The LM48560 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's crucial to consider the thermal management and ensure the device operates within the recommended temperature range to maintain reliability.
  • TI provides a troubleshooting guide in the application note SLVA884, which covers common issues and their solutions. Additionally, engineers can use tools like oscilloscopes and thermal cameras to diagnose and debug issues with the LM48560.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM48560TLX/NOPB Overview

Use the download button to access the LM48560TLX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM485, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
